RTD's

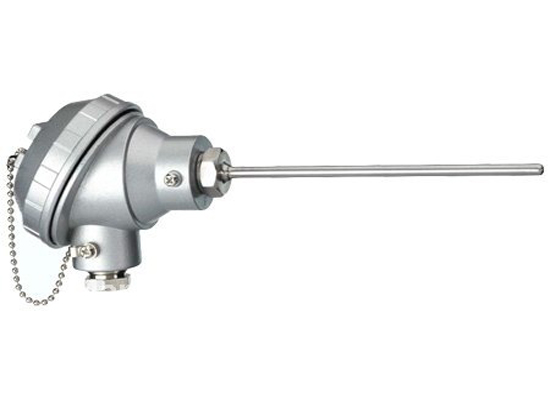

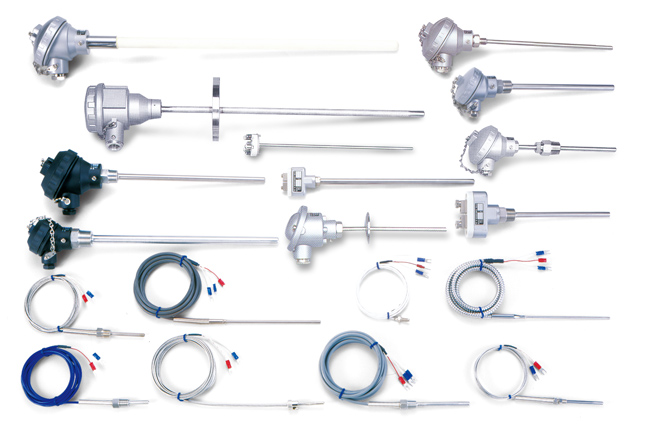

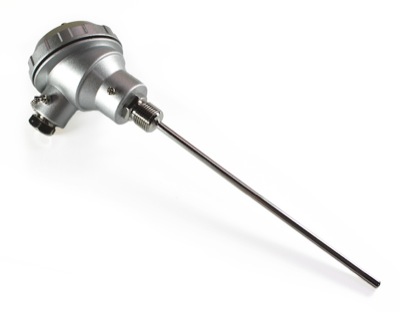

RTDs (Resistance Temperature Detectors) - are temperature sensors that have a resistor inside that changes resistance value as its surrounding temperature changes.RTDs are being used for many years to measure temperature in industrial processes, labs and have developed a reputation for stability, repeatability and accuracy.

RTD elements mostly consist of a length of fine coiled wire wrapped around a ceramic or glass core. The element is mostly somewhat fragile, so it is often placed inside a sheathed probe for its own protection. The RTD element is made from a very pure material whose resistance at various temperatures has been known or documented. The material has this predictable change, in resistance which is proportional to the change in temperature; it is this predictable change that is used to determine temperature.

RTD sensors are generally chosen over our thermocouples in applications which require a higher accuracy and higher repeatability of temperature measurements. Due to their design, our RTDs are also easier to install and calibrate.

FEATURES:

• A wide temperature range (approximately -200 to 650°C)
• Better accuracy
• Good interchange ability
• Long-term stability

RTD Elements

• Element Options: 2, 3, 4 wire per element construction
• Single and duplex elements
• Wire wound or film type elements

Materials:

• Platinum, Copper, Nickel, Nickel-Iron

Values:

• Platinum (100, 200, 500, 1000 ohm)

Accuracies:

• Platinum (±0.12%, ±0.1%, ±0.03%, ±0.01% at 0°C)

Sheath Options:

• Compression fittings
• Welded bushings
• Flanged
• Bayonet fittings
• Sheath bend
• Teflon coating

Sheath Materials:

• SS 304,SS316,SS310,INCONNEL
